Full Comparator (CB6548E)

Details
Written by: Newton C. Braga

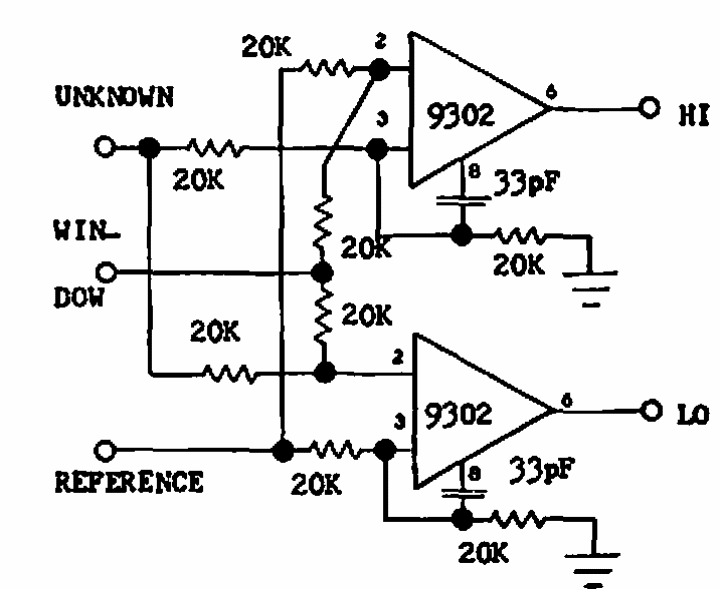

    Applying an operational of the time, this circuit of an old documentation can be elaborated with modern operational. The feed must be symmetrical.




| Clique na imagem para ampliar |
