PUT neon shutter (CB6686E)

Details
Written by: Newton C. Braga

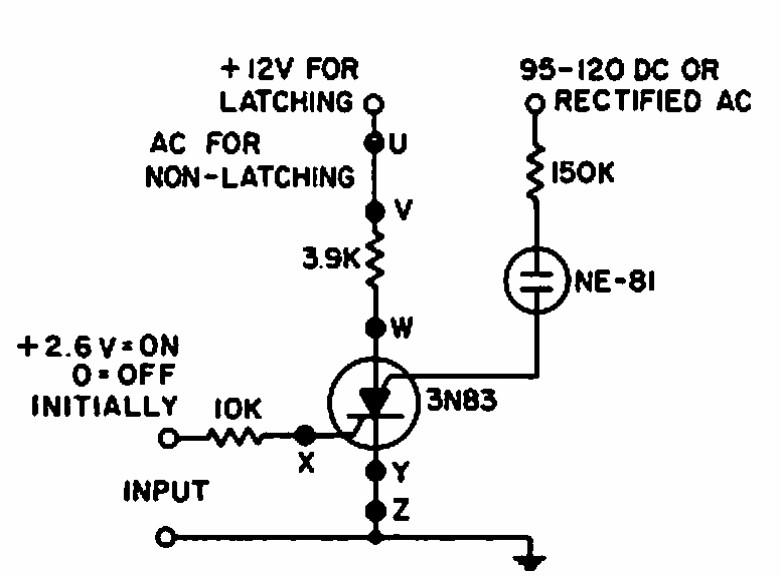

    This circuit was found in General Electric documentation from 1964. It makes use of a PUT, called the PNPN planar key at the time. The circuit has two supply voltages.




| Clique na imagem para ampliar |
