SCA Decoder (CB6210E)

Details
Written by: Newton C. Braga

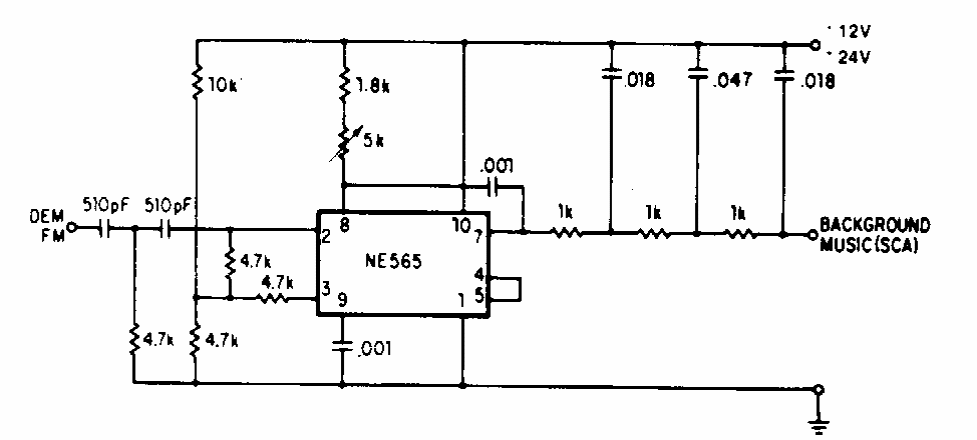

     This FM advertising suppressor (SCA) decoder circuit was suggested by Signetics in a 1980s documentation. The circuitry decodes the 67 kHz signal. The integrated circuit used is of the time.
