Dimmer or speed control (CB7041E)

Details
Written by: Newton C. Braga

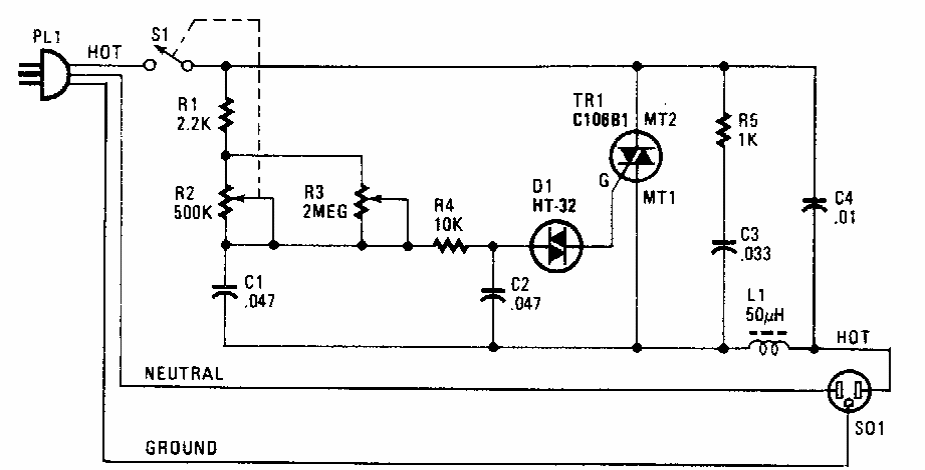

    This circuit can be used with motors or resistive loads, such as heaters and incandescent lamps. The circuit is from Popular Electronics from the 90s. All components used are common.
