1800 Hz Reject Filter (CB7400E)

Details
Written by: Newton C. Braga

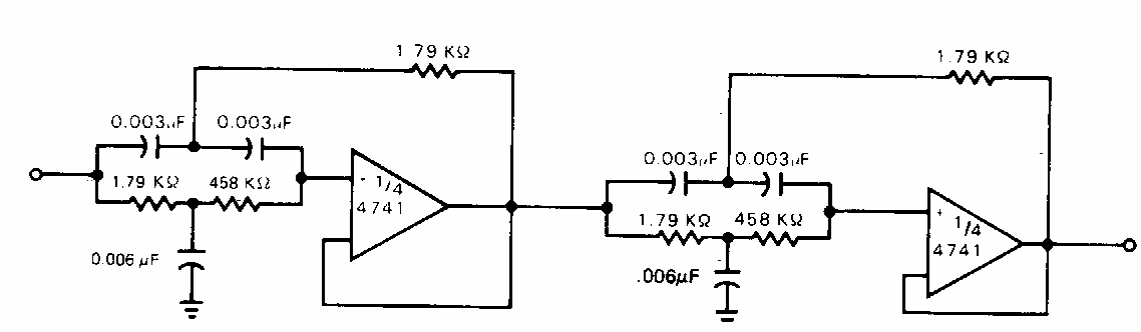

     Found in Exar documentation from the 1980s, this circuit has a 60 dB cutoff at 1800 Hz. The circuit can be adapted to operate at other frequencies.
