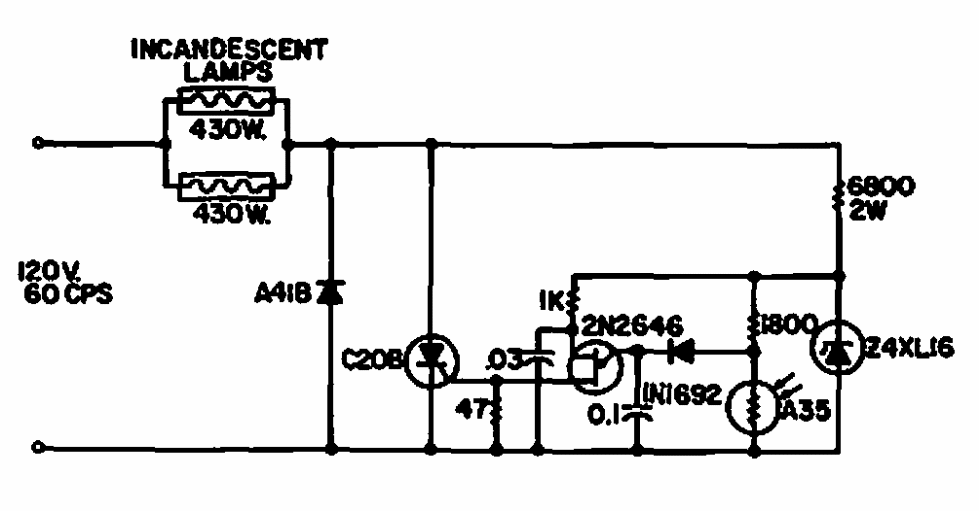

Suggested by General Electric in 1965 documentation, this circuit controls the current at a load from half to maximum power. The circuit is for loads up to 900 W with the indicated components.
| Clique na imagem para ampliar |
Limited range control (CB7221E)
- Details
- Written by: Newton C. Braga
