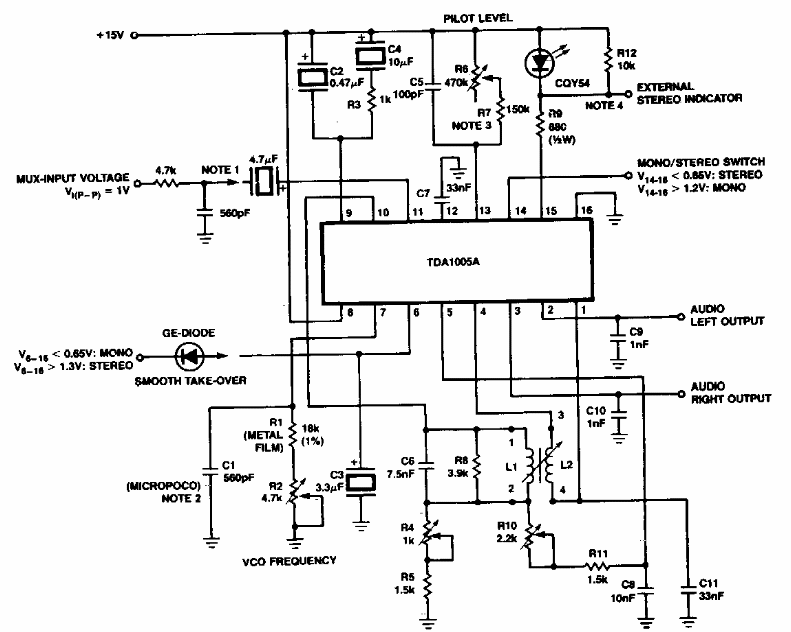

FDM Stereo Decoder (CB6209E)

Details
Written by: Newton C. Braga



     This frequency division multiplexing signal decoding circuit is from a 1980s documentation. The integrated circuit used is not very common today.
