Booster for preamplifier (CB6290E)

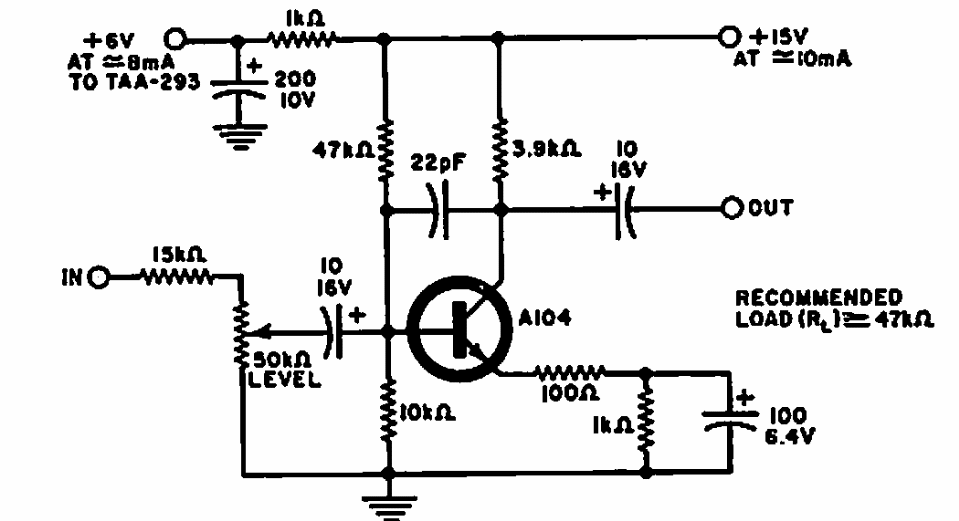

We found this circuit in a 1968 Electronics World. The circuit uses a transistor of the time providing a 16 dB signal gain with a 4 V output.
