Current Regulator (CB6630E)

Details
Written by: Newton C. Braga

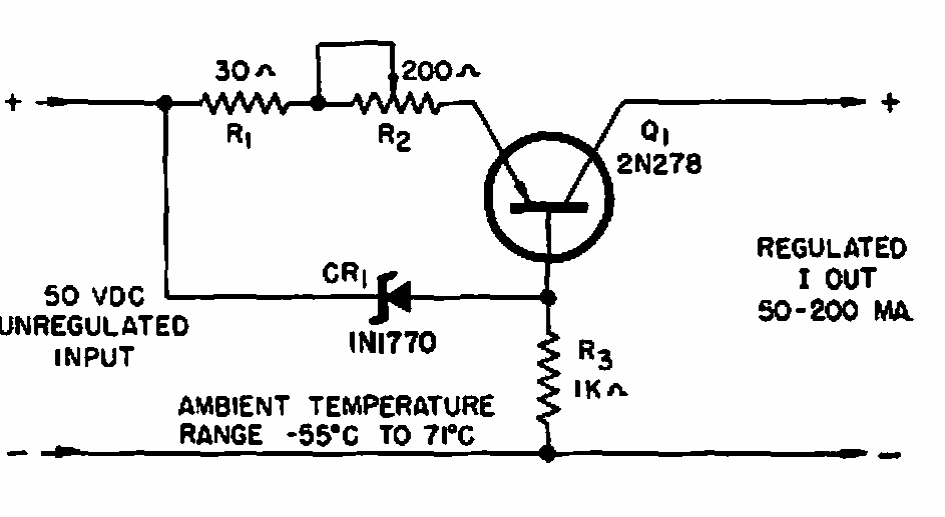

     This circuit was found in Delco documentation from 1965. The transistor is of the time, but any current power PNP with at least 500 mA collector current and 100 V collector voltage can be used.




| Clique na imagem para ampliar |
