Two-state sequential (CB6566E)

Details
Written by: Newton C. Braga

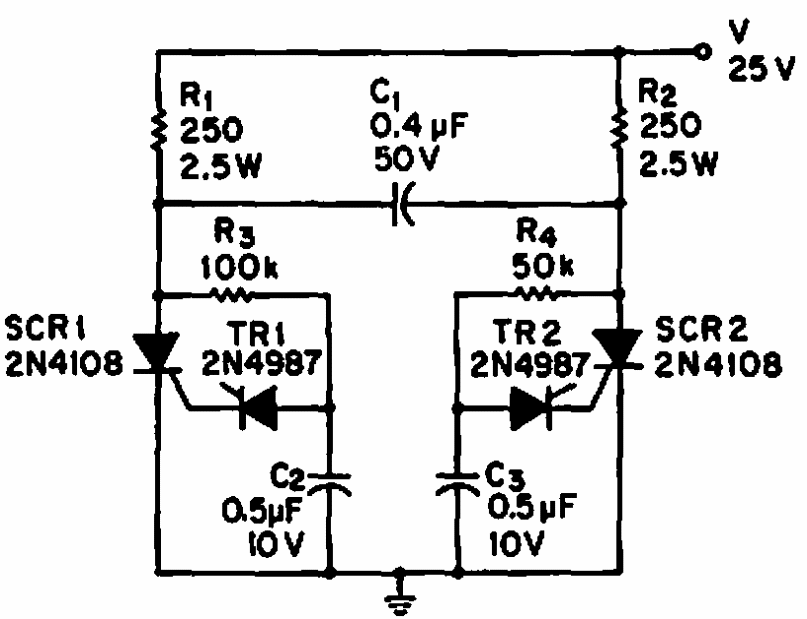

    Found in a 1970 documentation, this SCR bistable can be implemented with modern equivalent SCRs. Observe the controlled loads.




| Clique na imagem para ampliar |
