Logarithmic Polarization Source (CB6594E)

Details
Written by: Newton C. Braga

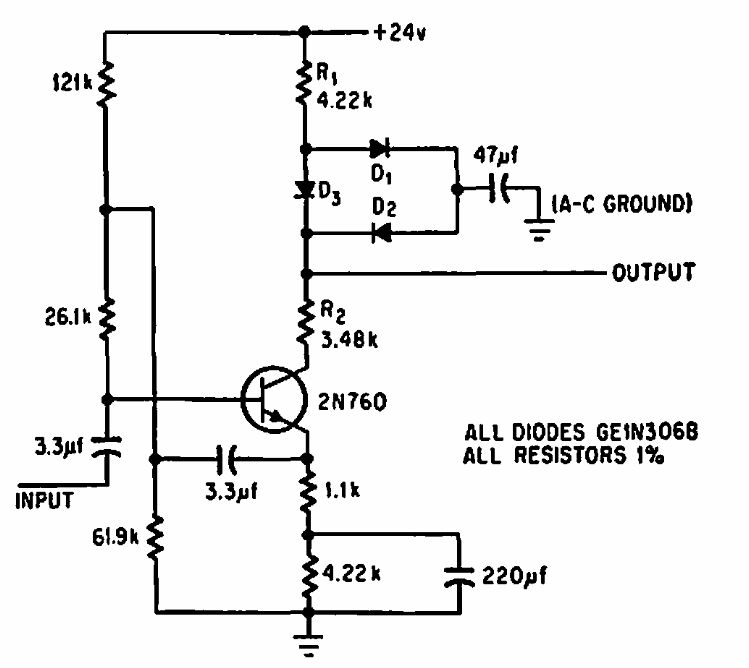

    This circuit delivers at its output a voltage that proportional to the amplitude of the input signal in a range of 36 dB. We found it in an American documentation from 1966.
