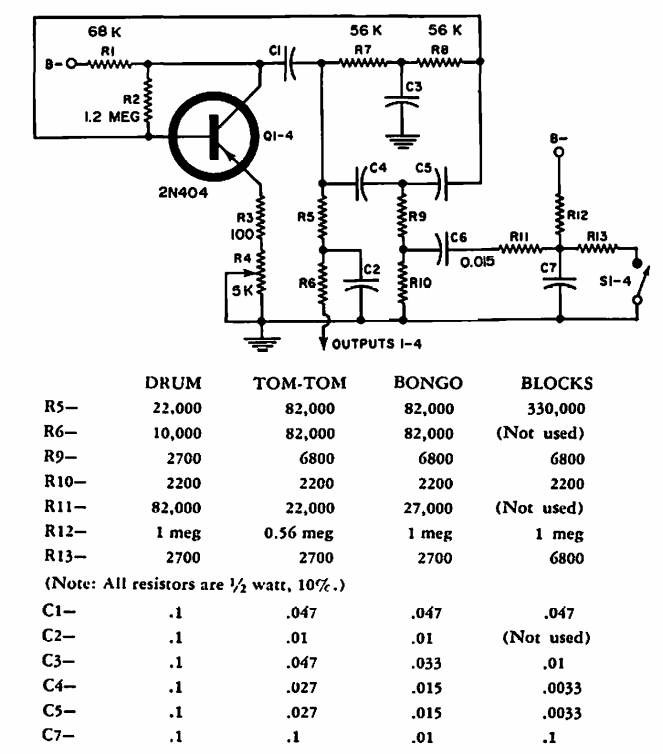

This circuit produces percussion sound from various instruments and can be used on an electronic drum. The transistor can be any general purpose and the tones obtained depend on the components as shown in the table. The signal must be applied to an amplifier.
