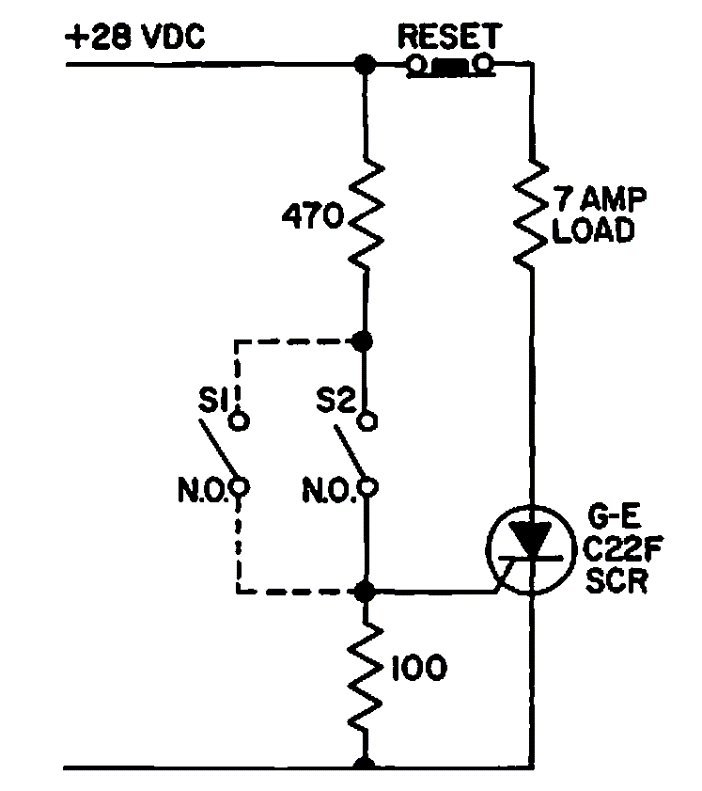

28 V Lock (CB7236E)

This circuit was found in a 1965 General Electric publication. The circuit can be adapted to operate with other voltage lamps.
