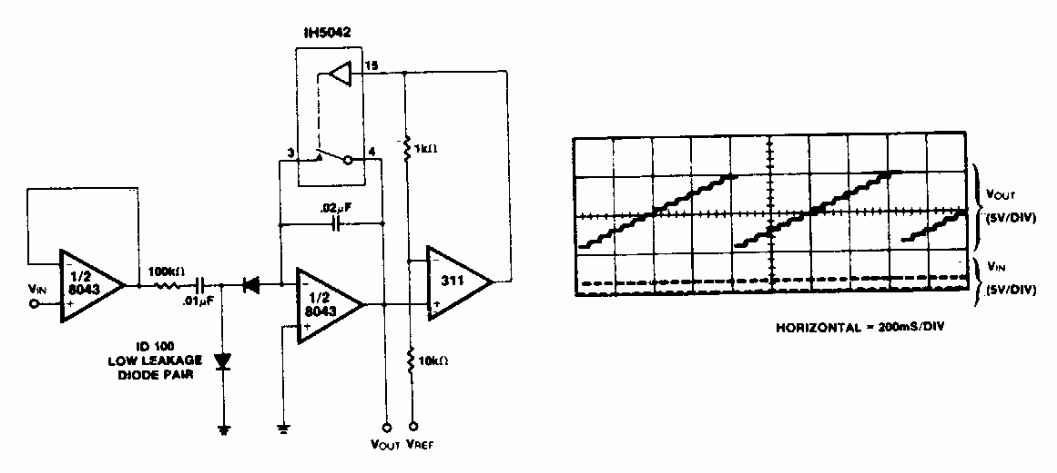

This Intersil circuit was found in a 1980s documentation. Operational are of the time, but current equivalents can be experienced. The graph with the circuit performance is given next to the diagram.
