Battery Monitor (CB6398E)

Details: Written by: Newton C. Braga

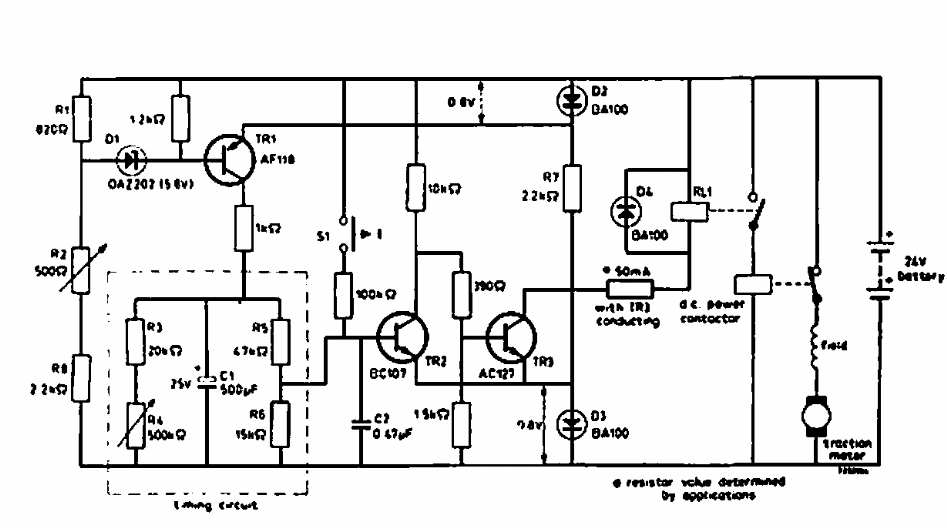

This circuit was originally found in a Philips documentation from 1969. It is intended for sensing golf cart battery voltage. The circuit can be adapted for other types of battery vehicles.
