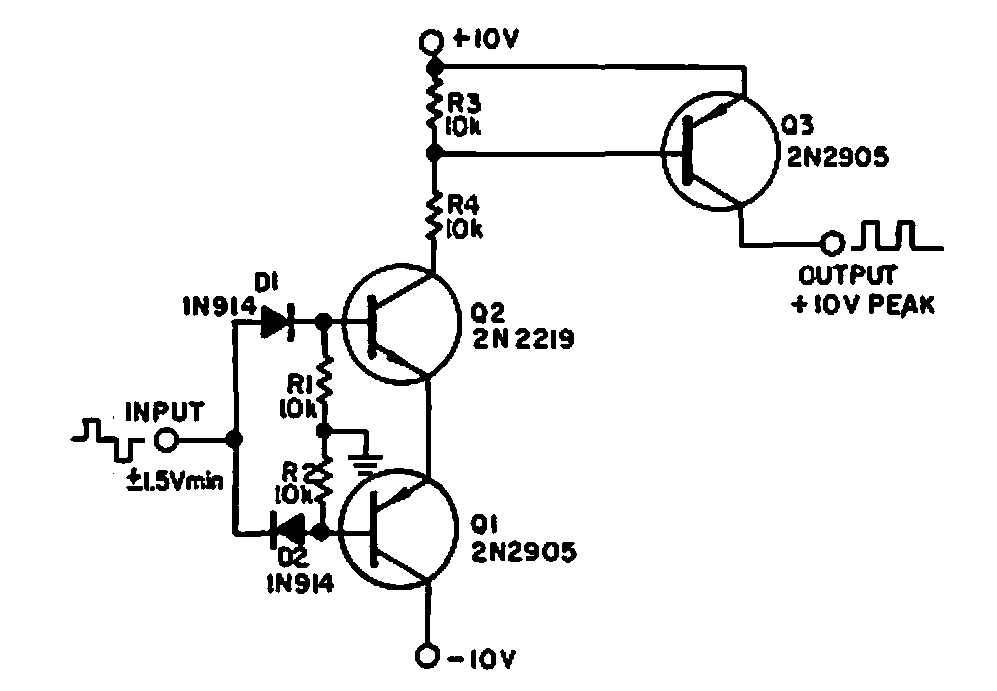

Bipolar Pulse Counter (CB6616E)

Found in an Electronic Design, this circuit makes use of general-purpose bipolar transistors. The circuit can be adapted to operate at lower voltages
