Full wave dimmer with SCR (CB7219E)

Details
Written by: Newton C. Braga

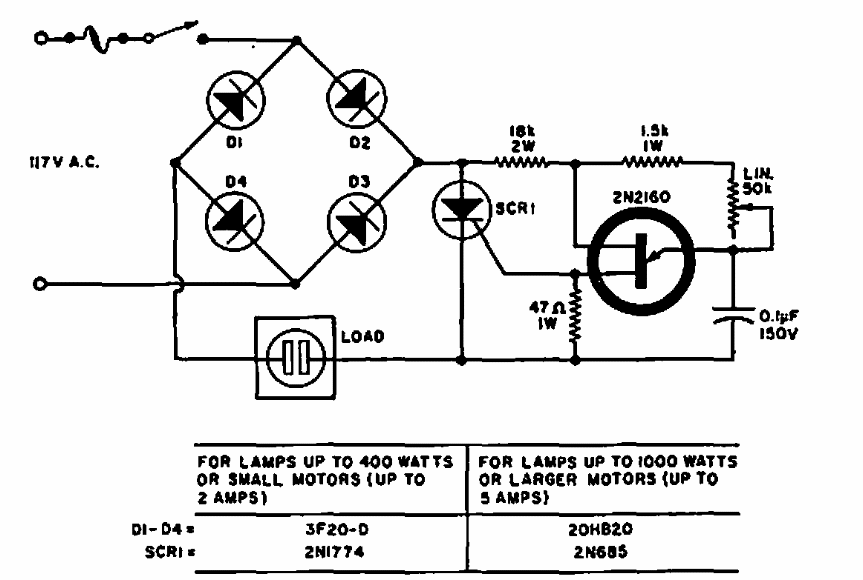

     Found in an Electronics World of 1968 this circuit can use any SCR and diodes depending on the load. The circuit is full wave and the unijunction can be 2N2646.
