Analog multiplier (CB7392E)

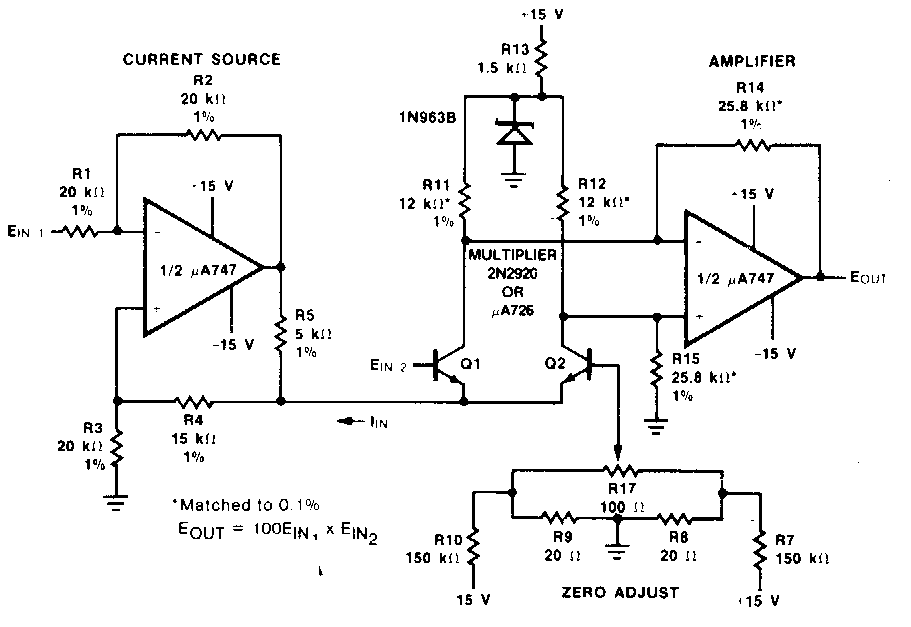

Suggested by Fairchild in a 1980s publication, this multiplier uses operational amplifiers from that time. The power supply must be symmetrical.
