2 kW Flasher (CB6259E)

Details
Written by: Newton C. Braga

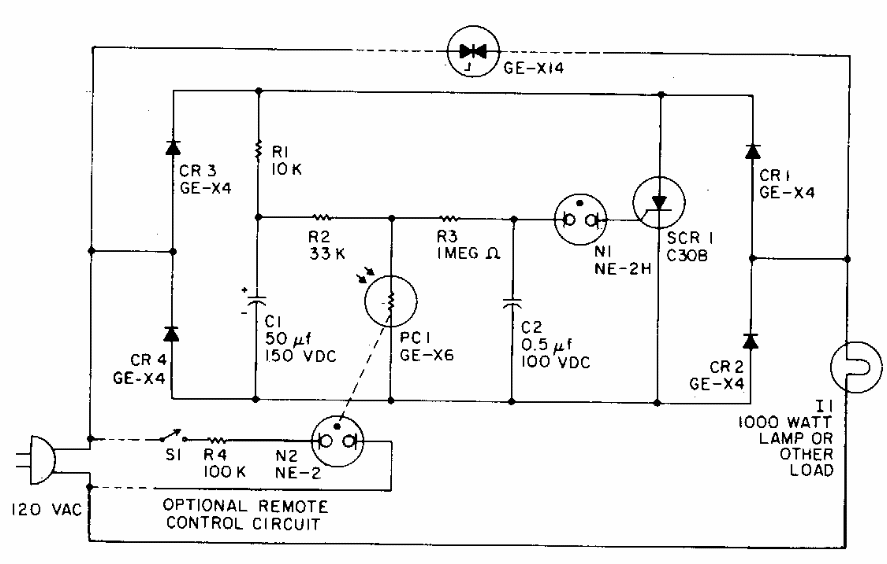

     This high-power flasher for incandescent signaling lamps was found in a 1980s General Electric documentation. The circuit has a photoelectric control and is powered by the 110V grid.




| Clique na imagem para ampliar |
