10 W Amplifier (CB6287E)

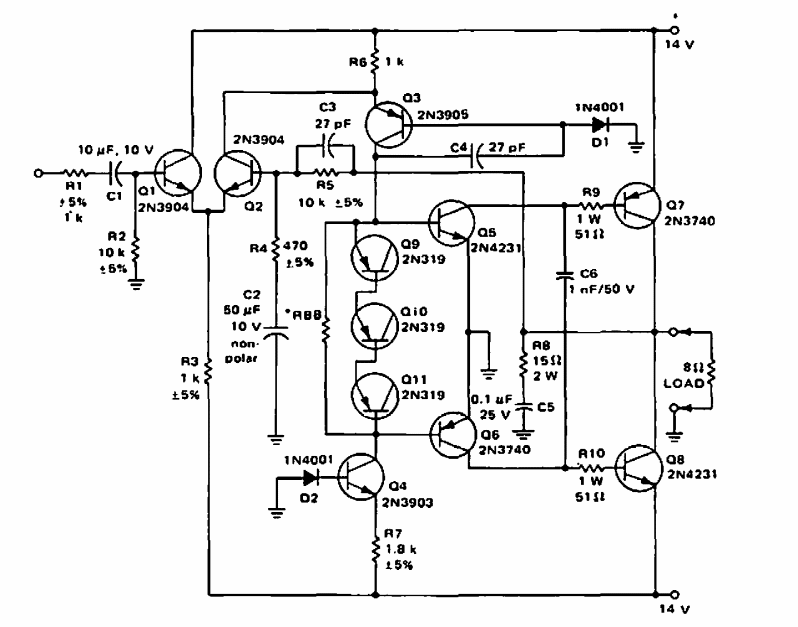

For an 8 ohm load, this Motorola circuit was found in a 1968 documentation. The transistors are of the time and the power supply must be symmetrical.

| Clique na imagem para ampliar |

CB15908E Photodiode Amplifier (CB15908E)
This circuit is suggested by National Semiconductor and has an excellent gain, for a photodiode as a...
