Active antenna (CB6771E)

Details
Written by: Newton C. Braga

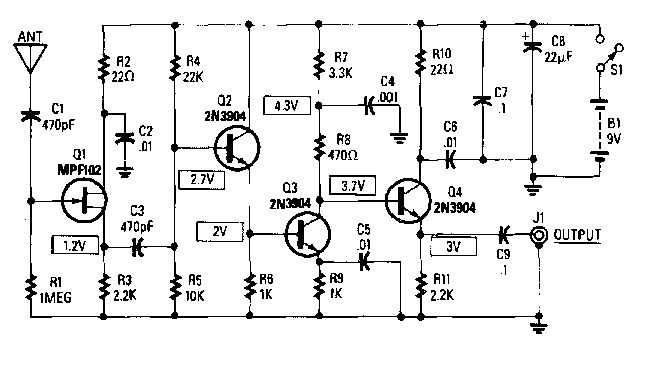

    This circuit for medium and short wave range was found in an American documentation from 1992. The circuit can use general purpose transistors and the antenna can be external or telescopic.
