Interface shield (CB7260E)

Details
Written by: Newton C. Braga

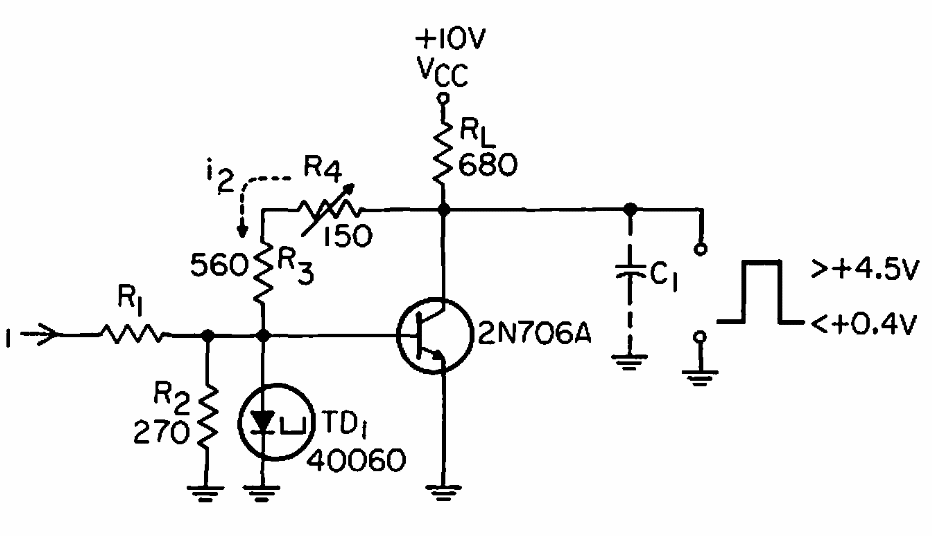

     This circuit with TTL output was found in a 1968 EEE. The transistor can be of general use. The tunnel diode is an uncommon component today.
