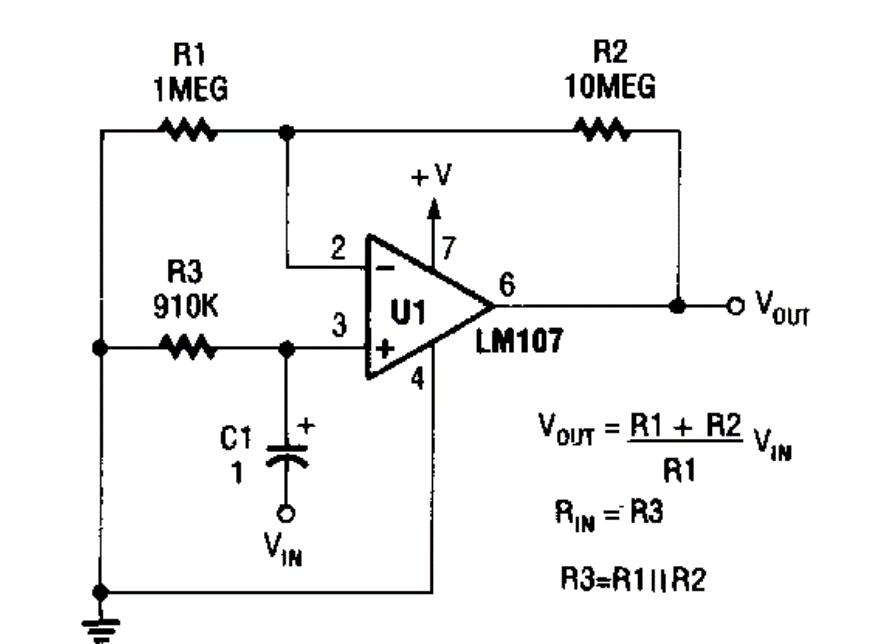

Non Inverting Amplifier (CB6433E)

Details
Written by: Newton C. Braga



     Based on an operational of the time, this Popular Electronics circuit can be designed with any equivalent operational.
