12 V Charger (CB24051E)

Details
Written by: Newton C. Braga

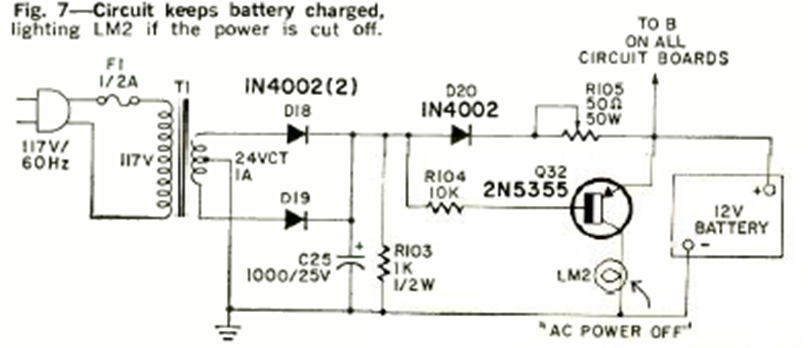

This circuit was used in an alarm published in the July 1970 Radio Electronics magazine. The transistor is a power transistor, and the transformer is 1 A. The power transistor must be equipped with a heat sink.
