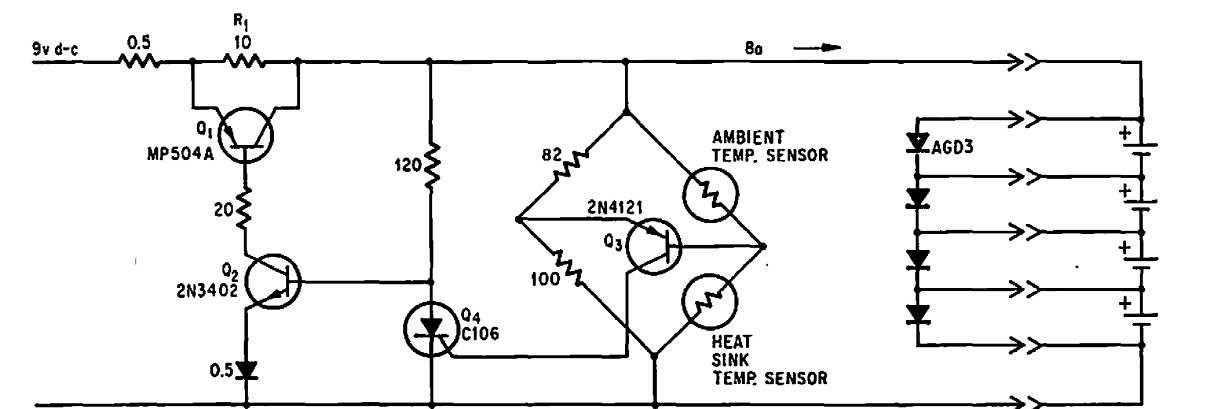

Nicad Protected Charger (CB6396E)

Details
Written by: Newton C. Braga



    This circuit is from a 1968 documentation. It makes use of thermistors (NTC) to indicate overheating of charged batteries. Modern equivalent components can be used.
