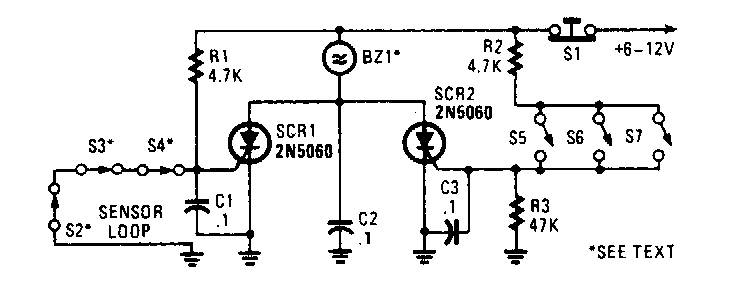

This series and parallel sensor circuit was found in Popular Electronics from the 1990s. Any SCR can be used and the supply voltage depends on the load.
