Automatic headlight shutdown (CB7260E)

Details
Written by: Newton C. Braga

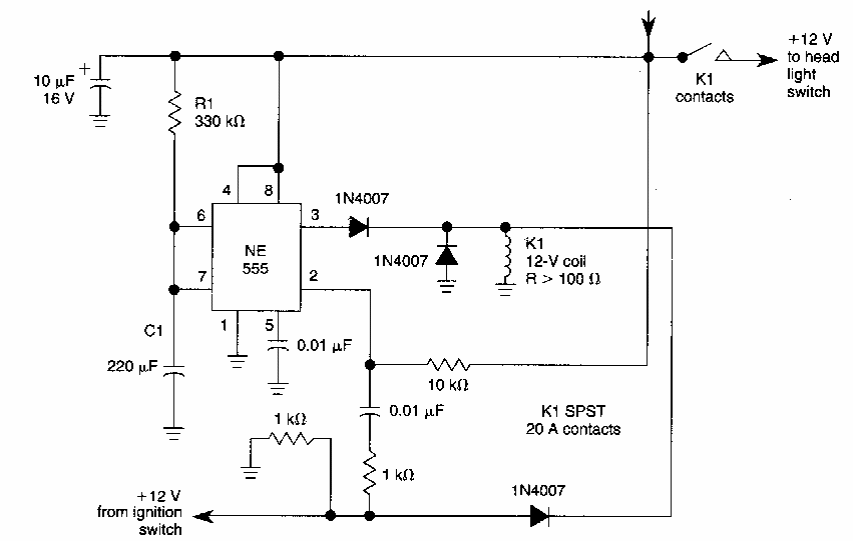

    This circuit for automotive use was found in American documentation from the 90s. The circuit uses common components today. The relay is 12 V.




| Clique na imagem para ampliar |
