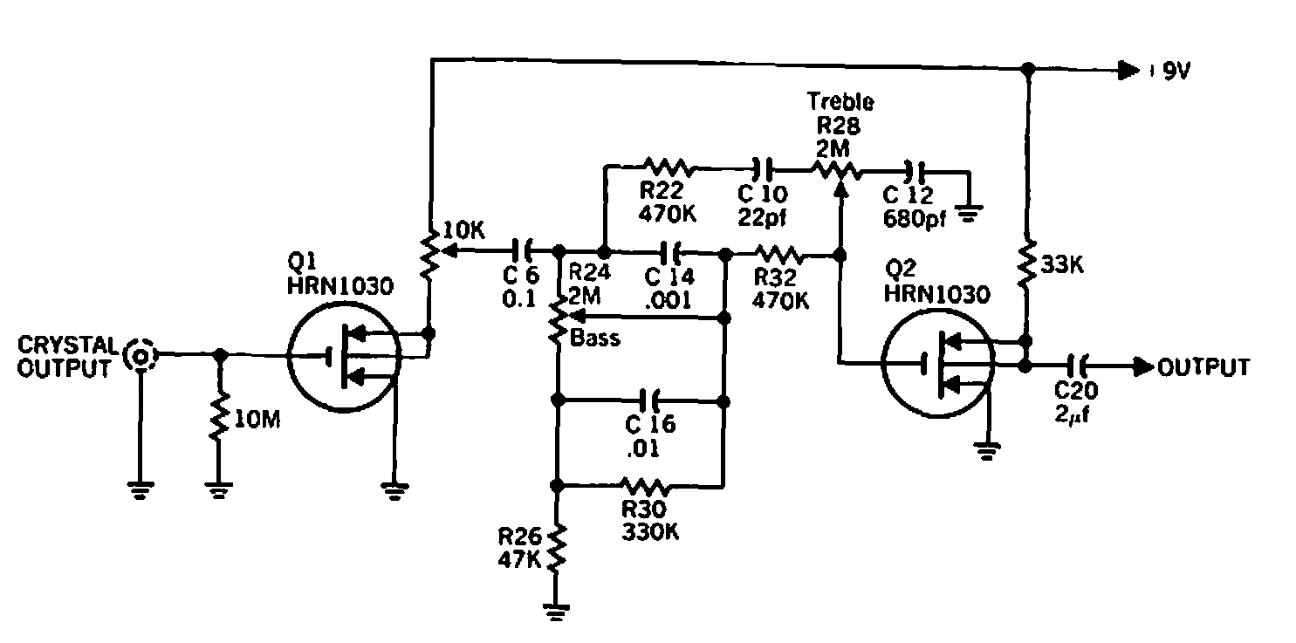

MOSFET tone control (CB6308E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1968 US publication. Transistors used are uncommon today. The circuit can be adapted to operate with modern equivalent components.




| Clique na imagem para ampliar |
