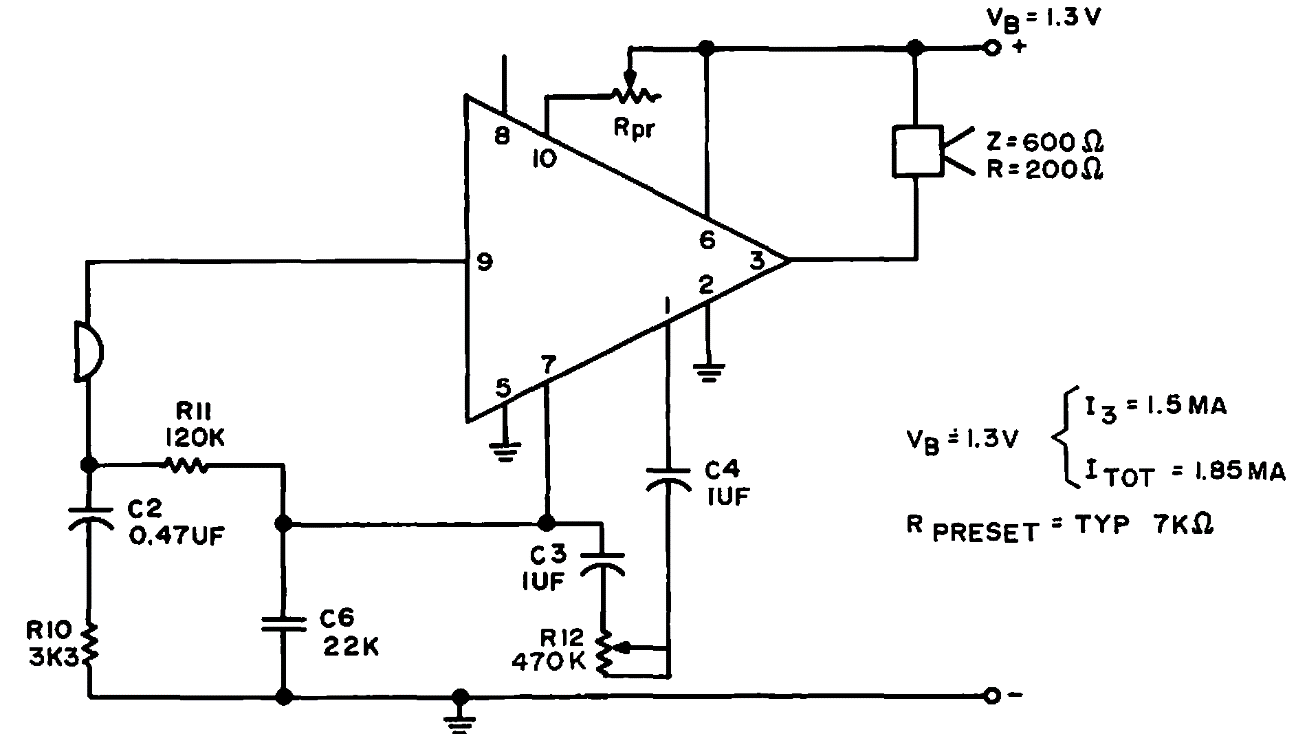

Suggested by Amperex in a 1968 documentation, this circuit is based on TAA370, an integrated circuit of the time, uncommon today. The circuit operates at only 1.3 V and has a through range of 100 to 20 000 Hz.
| Clique na imagem para ampliar |
Hearing Aid Amplifier (CB6286E)
- Details
- Written by: Newton C. Braga
