Rhythmic Light (CB6702E)

Details
Written by: Newton C. Braga

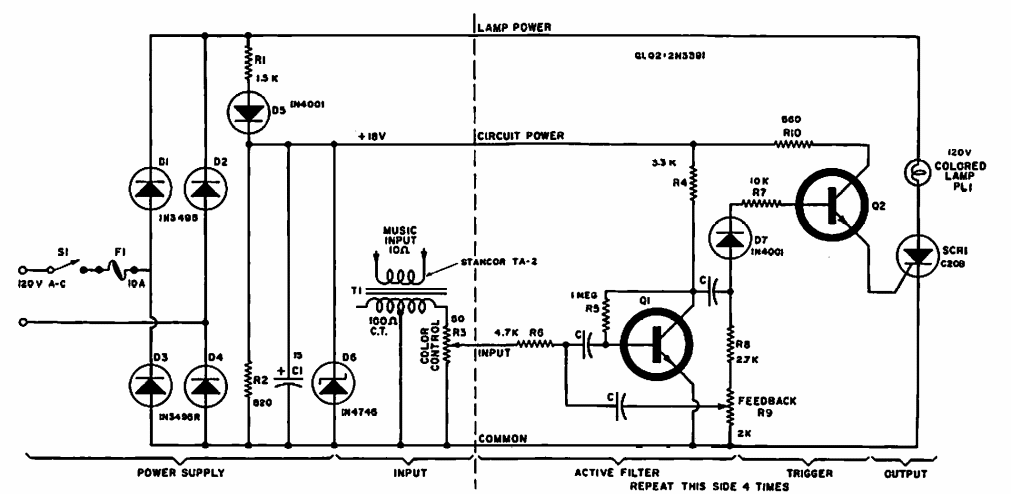

    Found in an Electronics World of 1969, this circuit causes a light bulb to flash along with the audio signal applied to the input. The circuit only works with incandescent lamps. C can be 47 nF to 220 nF.




| Clique na imagem para ampliar |
