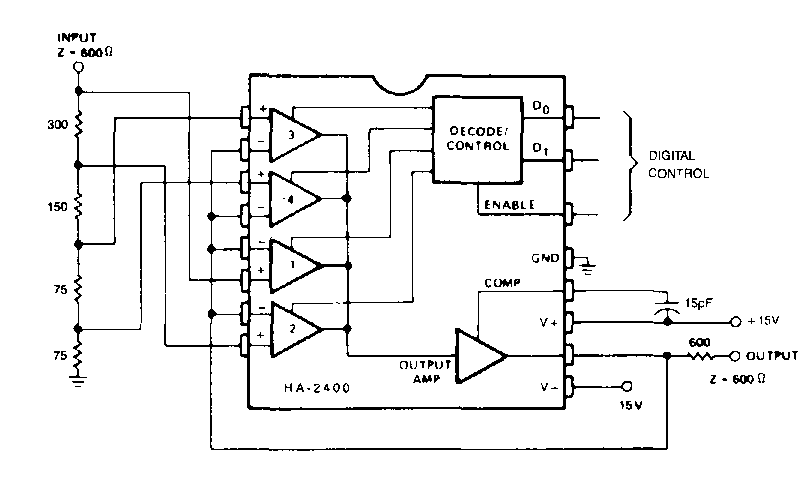

Programmable attenuator (CB6793E)

Details
Written by: Newton C. Braga



     This circuit was found in Harris' 90s documentation. The used component is uncommon today.
