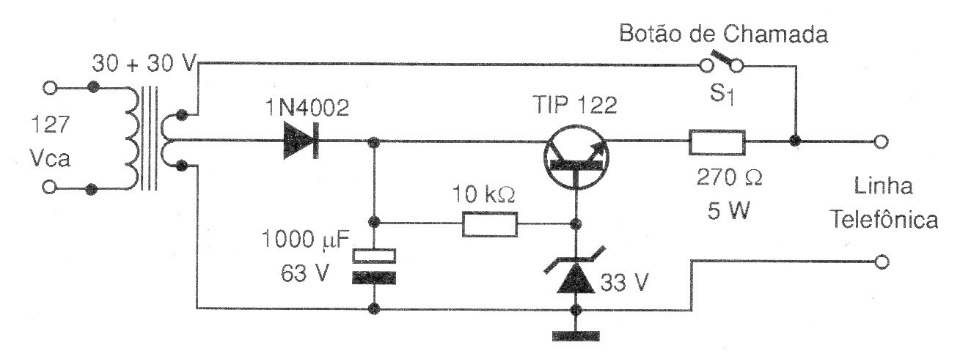

This simple circuit can be used to power a simple communication system using ordinary telephones. The circuit provides a continuous voltage of 32 V and a 60 V alternating voltage for the calling system. We found this configuration in a 2004 documentation.
| Clique na imagem para ampliar |
