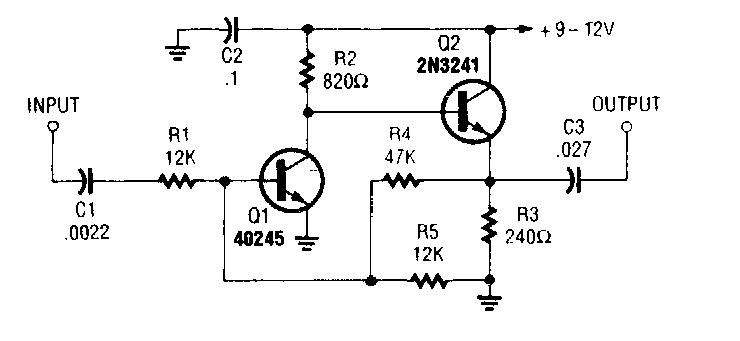

Buffer for VFO (CB7282E)

Details
Written by: Newton C. Braga



     This circuit was obtained in a Popular Electronics from the 90's. The gain depends on R4 and R3. Transistors are general purpose types.
