to decimal converter (Binary

Details
Written by: Newton C. Braga

)

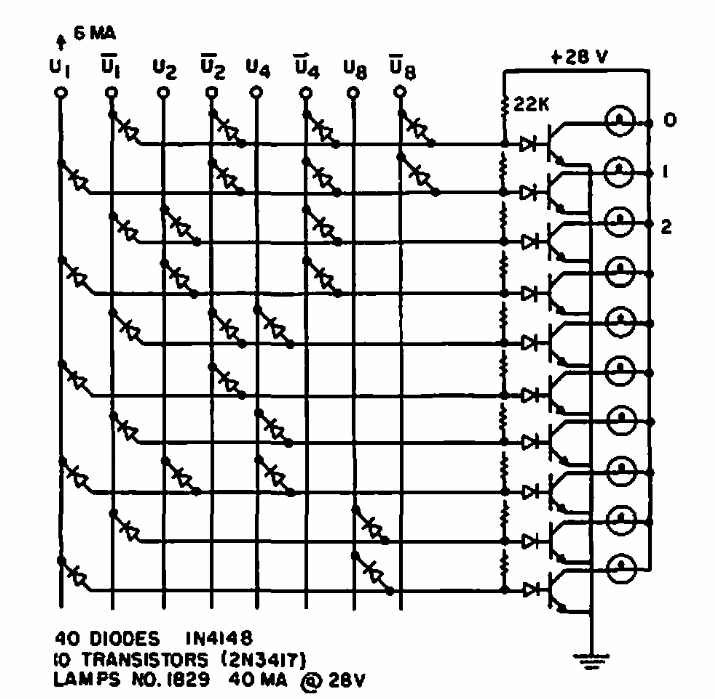

     This binary to decimal converter matrix was found in a 1964 General Electric publication. It can be used on modern equivalent circuits, including as a shield.




| Clique na imagem para ampliar |
