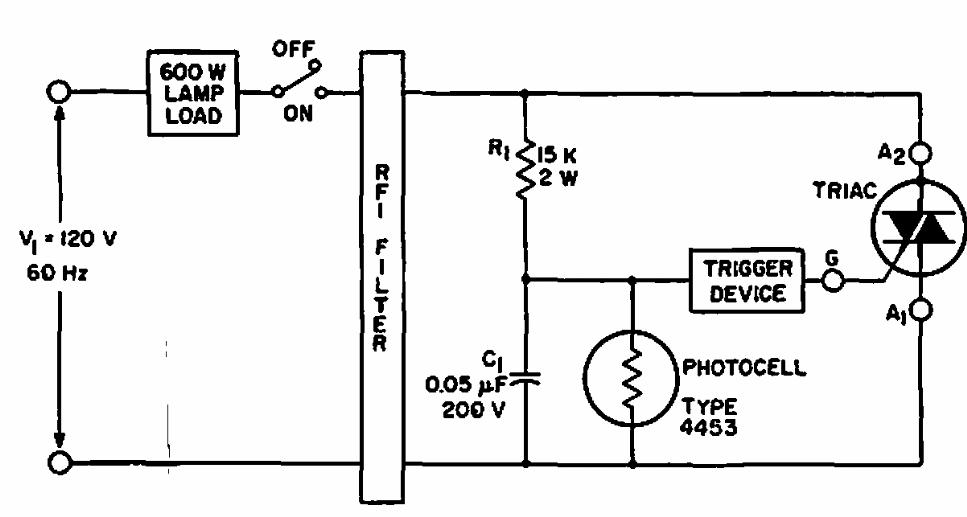

Night switch (CB7189E)

Found in RCA documentation two years 70, this circuit triggers an incandescent lamp at dusk. The circuit uses an LDR of the time.

| Clique na imagem para ampliar |
