Tone activated Triac (CB7234E)

Details
Written by: Newton C. Braga

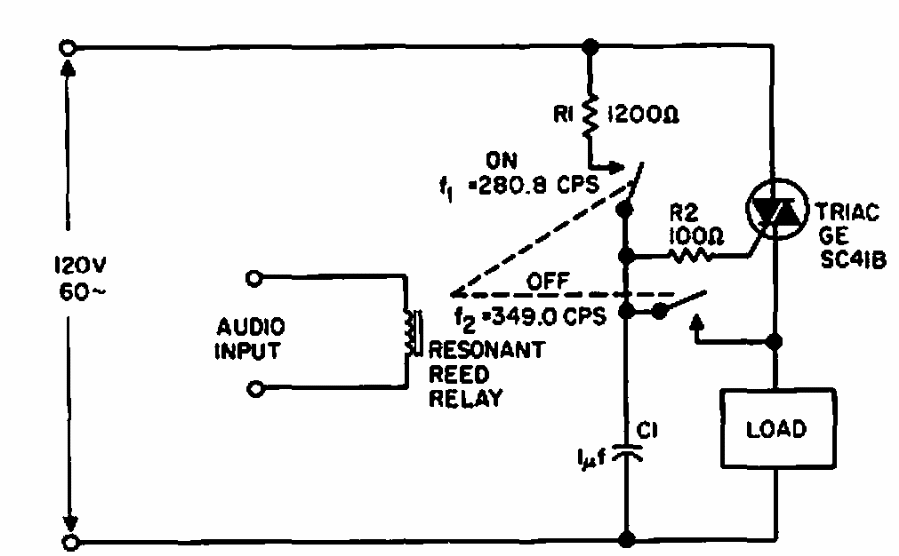

     This circuit uses a resonant reed switch at the trigger frequency. The circuit is from General Electric in a 1966 documentation. This type of component is rare today.
