2 A Charger (CB6395E)

Details
Written by: Newton C. Braga

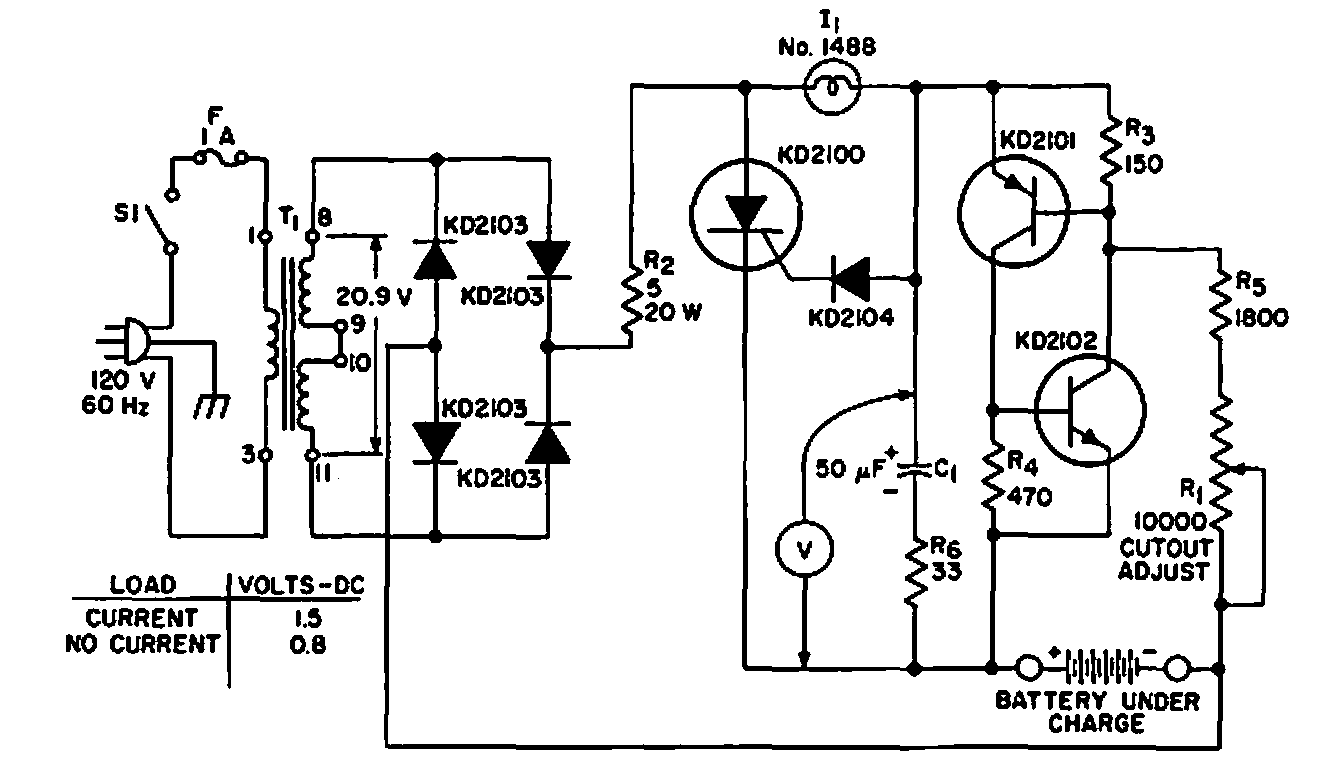

    This circuit was found in a 1967 RCA documentation. The components are of the time. The circuit limits the current to 50 mA when the battery is fully charged.
