Liquid Flow Meter (CB6340E)

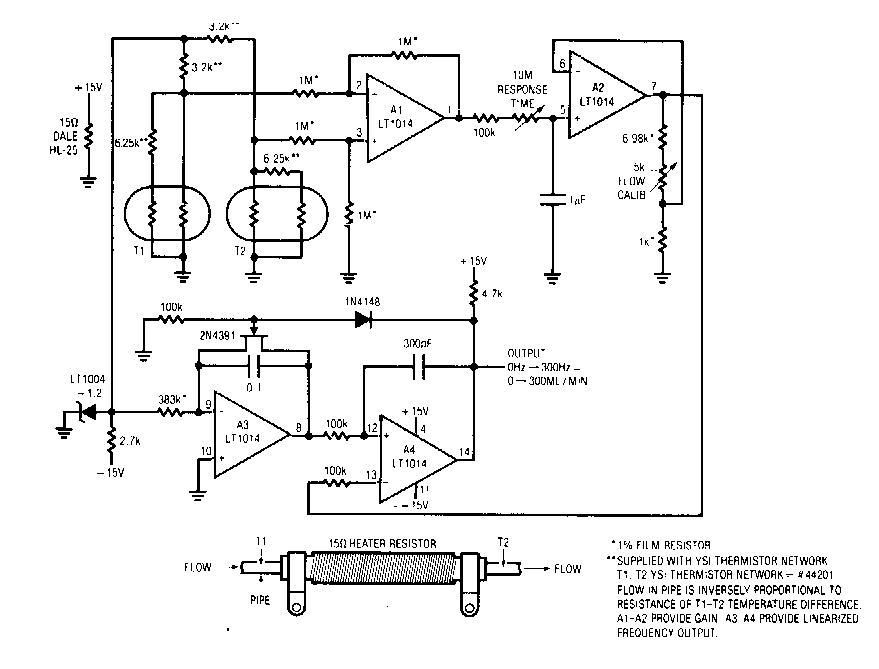

This circuit was found in an old Linear Technology documentation. The working principle can be harnessed in modern designs with current components.
