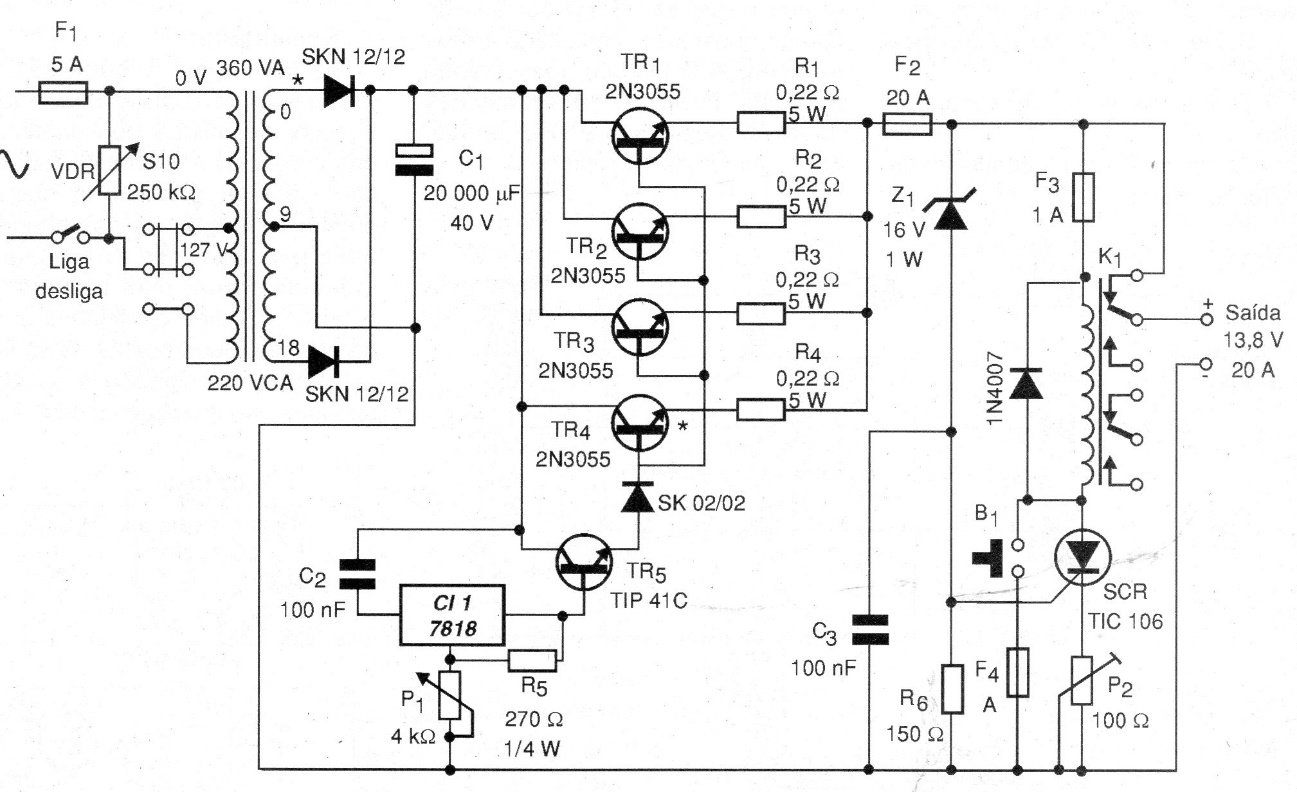

This 13.8 V transistorized power supply with a current capacity of 20 A has a protection system against shorts. The circuit was found in a 2004 documentation. The transistors must have excellent heat sinks as well as the integrated circuit.
