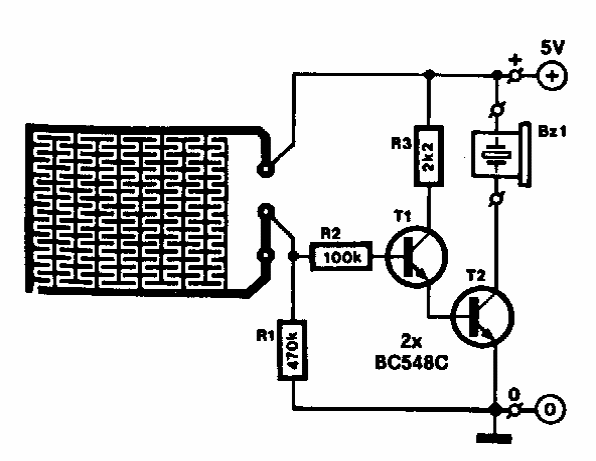

Found in an Elektor from the 90s, this circuit triggers a Sonalert-type buzzer when the sensor is hit by water. The circuit must be powered by a battery or isolated source.
Full bath indicator (CB6952E)
- Details
- Written by: Newton C. Braga
Found in an Elektor from the 90s, this circuit triggers a Sonalert-type buzzer when the sensor is hit by water. The circuit must be powered by a battery or isolated source.
