Microphone Amplifier (CB6204E)

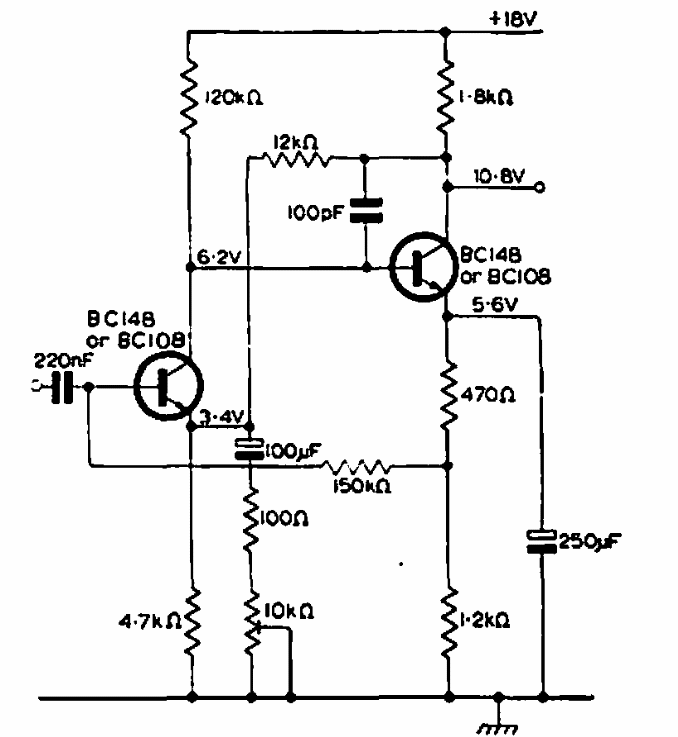

This amplifier was found in a 1969 Mullard documentation. The circuit uses transistors that have as modern equivalents the BC548 and BC549.

| Clique na imagem para ampliar |

3-Transistor Radio (CB21641E)
Found in the July 1968 Supertena Bulletin of a Popular Electronics, this receiver makes use of the...
Switched Power Supply from 4.5 to 30 V x 6 A (CB13505E)
This switching source was obtained in a 1976 National Semiconductor manual. For the indicated...
Crystal Oscillator LM339 (CB17388E)
This configuration appears several times on this site. The circuit can generate a 100 kHz or other...
