JFET Stage (CB6970E)

Details
Written by: Newton C. Braga

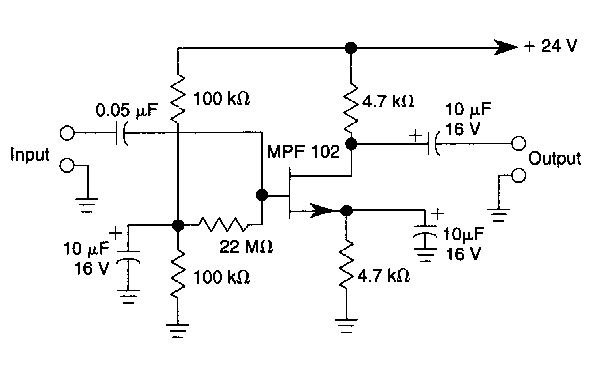

     This circuit was obtained in old American documentation and is valid for common JFETs. The circuit has an offset compensation for the polarization.
