1200M ohm probe (CB6452E)

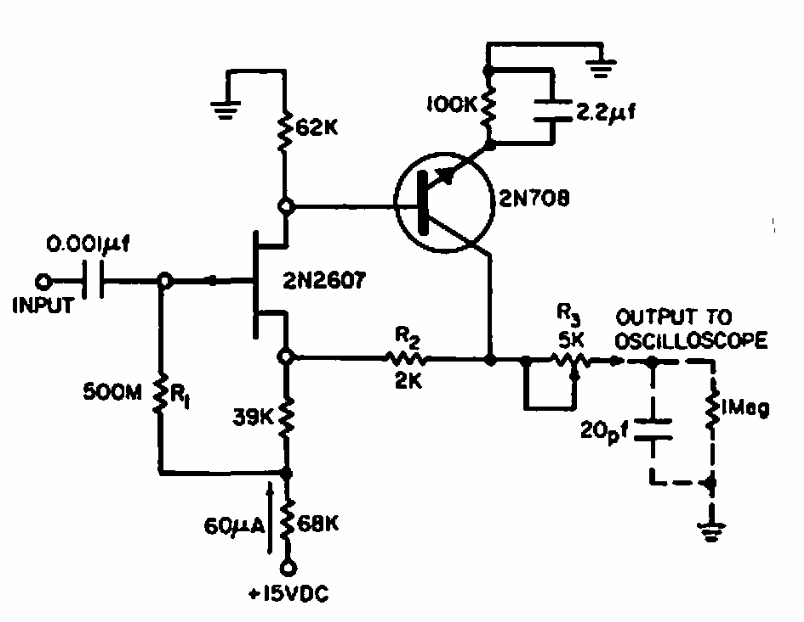

Suggested by a 1965 Electronic Design, this circuit was originally proposed for oscilloscope operation, but can be used with other instrument types.

| Clique na imagem para ampliar |
