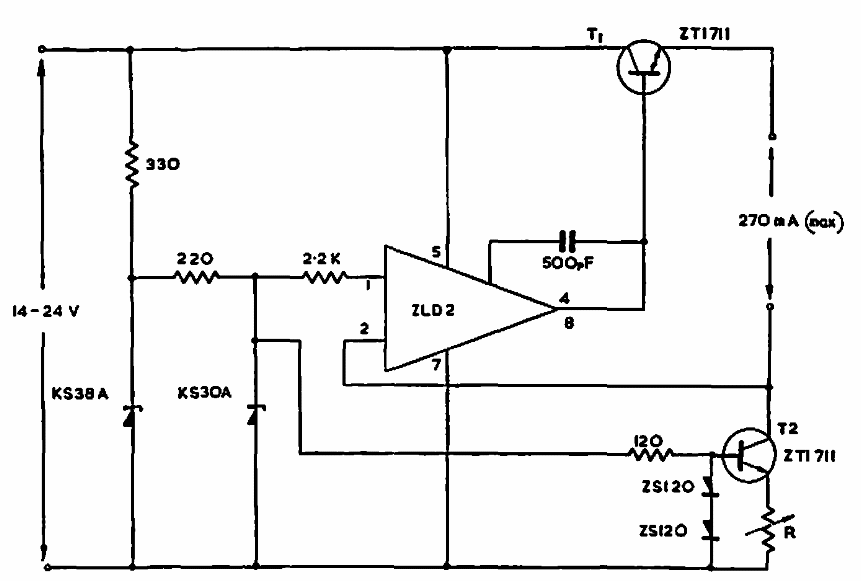

Stabilized Regulator (CB6624E)

Details
Written by: Newton C. Braga



     This circuit is from Ferranti documentation from 1967. The operational is of the time, but the configuration is valid for modern equivalent components, including higher current capacity.
