Sharp Notch Filter (CB6722E)

Details
Written by: Newton C. Braga

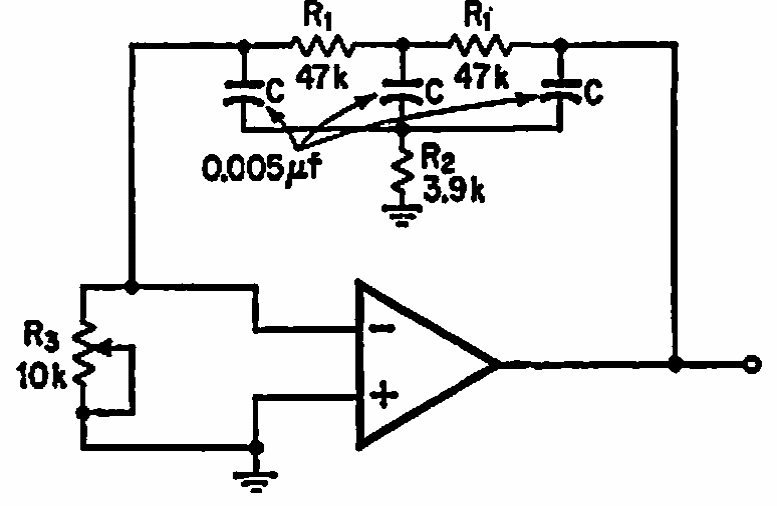

     This circuit was found in old documentation, but the setting applies to any operational. Resistors and capacitors determine the frequency. For the indicated values the frequency is 10 kHz.
