Contactless car ignition (CB6393E)

Details
Written by: Newton C. Braga

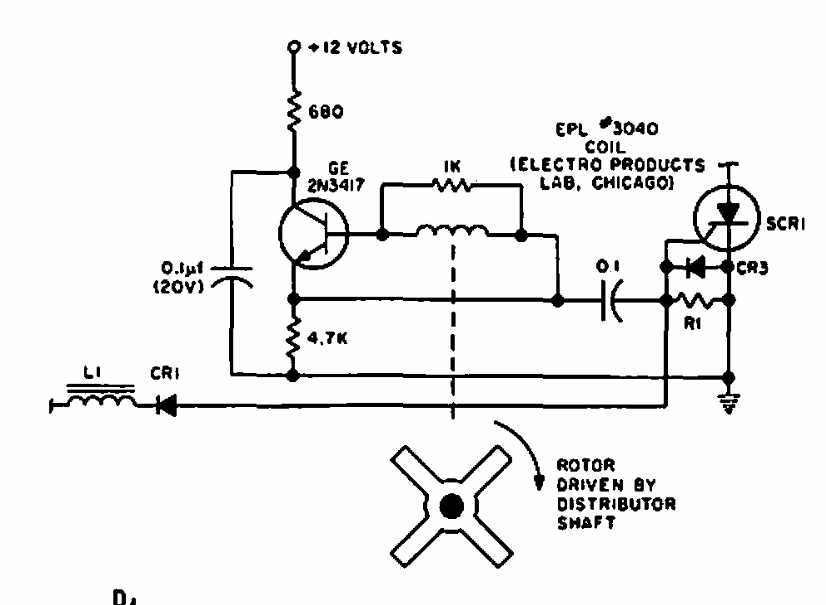

    This circuit was obtained from 1967 documentation. It uses a sensor to determine the trigger point. The components are of the time, difficulty to obtain these days.
