500 kHz Clock (CB6468E)

Details
Written by: Newton C. Braga

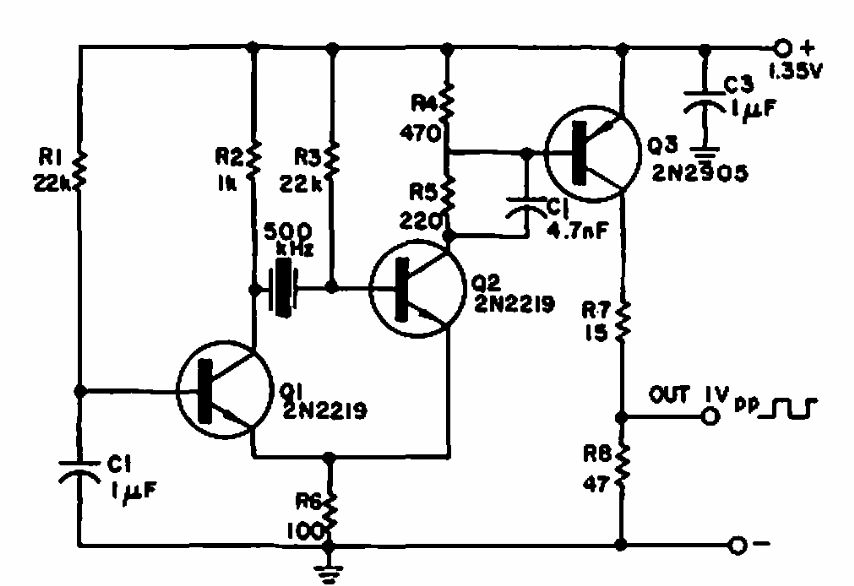

     Operating at just 1.35 V this circuit was found in a 1969 Electronic Design. The circuit makes use of transistors of the time but can be implemented with current equivalents.
