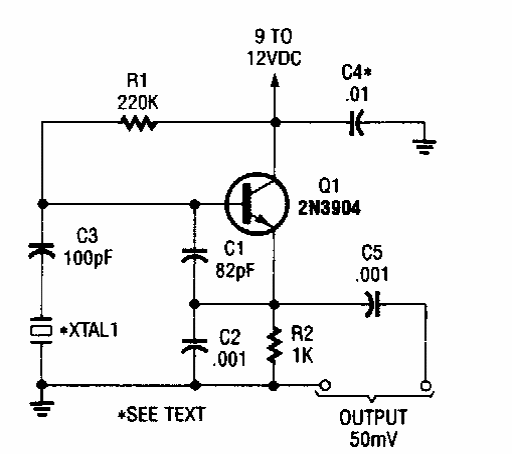

1 to 20 MHz Colpitts Oscillator (CB6506E)
- Details
- Written by: Newton C. Braga
Found on Popular Electronics from the 1990s, this oscillator uses a general purpose transistor. The frequency depends on the crystal. The output is 50 mV wide.
