Tape preamplifier (CB7310E)

Details
Written by: Newton C. Braga

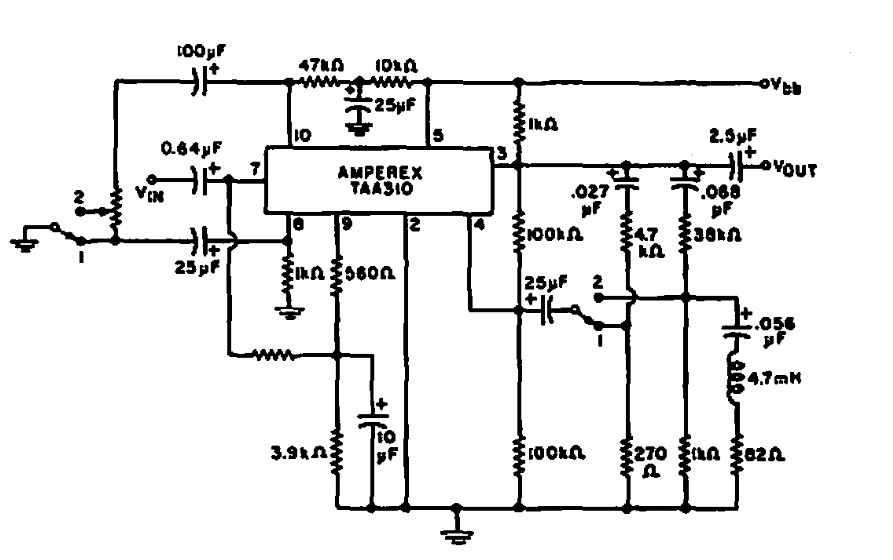

     Found in a 1967 Electronics World, this preamplifier uses an integrated circuit from that time, difficult to obtain today. The maximum frequency is 15 kHz.




| Clique na imagem para ampliar |
