Electric fence (CB6933E)

Details
Written by: Newton C. Braga

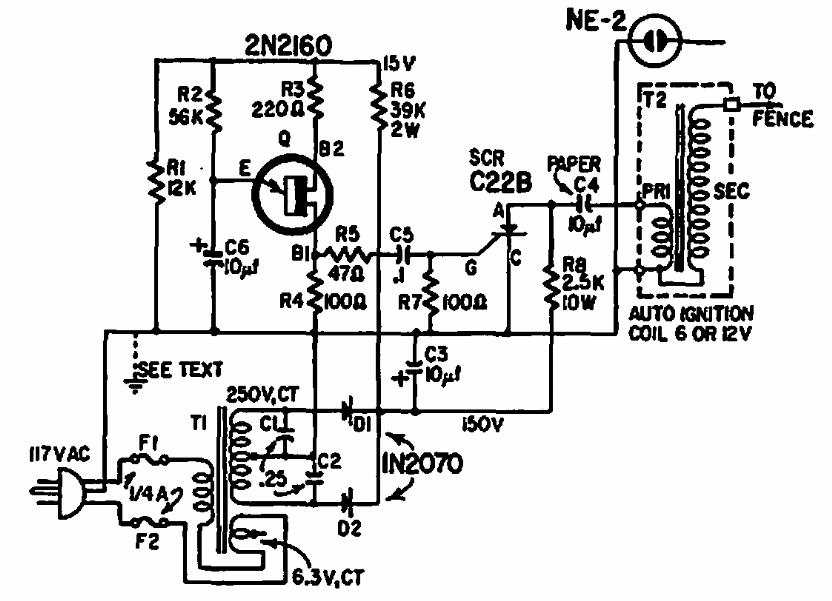

    This circuit was obtained from a 1965 Radio Electronics. The semiconductors used admit modern equivalents. The high voltage coil is an automobile ignition coil.
